Overview Back to top
The Scheduler is a timeline of your team. People are listed on the left and dates run across the top. Each board item is a bar on the row of the person it is assigned to.
Drag a bar to change its dates or its assignee. Every change is saved to the monday.com board right away.
Next to items you also see allocations (time booked without an item), leave, public holidays, and a daily workload bar for each person.
A board needs a Timeline column and a People column to appear on the Scheduler. A Numbers column with estimated hours is optional, but the workload bars need it. See Field Mapping.
Opening the Scheduler Back to top
You can open the Scheduler in two places:
- Workspace View — open WorkHub from your workspace and click Scheduler. It shows items from all the boards you select, on one timeline.
- Board View — add WorkHub as a view on a board. It shows items from that board only.
See Getting Started for the steps to open each one and to set up your boards.
Choose your boards (Workspace View)
The boards on the timeline are listed at the top left. Click Board setup to add or remove boards, or to change which columns a board uses.
Opening without boards
You can open the Scheduler before any board is set up. Click Open Scheduler with no boards selected, then Open anyway. The timeline shows your team with their leave and holidays.
- You can request leave, and log time if time tracking is on.
- Create item and Plan Item ask you to add a board first, because an item has to live on a board.
This choice is remembered in your browser. Add a board in Board setup to go back to normal planning.
View Modes Back to top
Pick how much time the timeline shows from the dropdown in the centre of the toolbar.
| View | Shows | Best for |
|---|---|---|
| Week - Daily | 7 days, one column per day | Day-to-day planning (default) |
| 2 Weeks - Daily | 14 days, one column per day | Sprints and short-term planning |
| Month - Daily | Every day of one month | Monthly capacity review |
| Year - Monthly | 12 months, one column per month | Long-term overview |
| Year - Daily | Every day of one year | Long-range planning with day detail |
| Custom range | The days you pick, up to 92 | Any start and end date |
In the daily views the header shows the week number and the dates of each week. Weeks start on the first day of the week set for your account in Settings › Timesheet Config.
Custom range
Use a custom range to show exactly the days you need, for example a sprint that runs Wednesday to Tuesday.
- Choose Custom range in the view dropdown, or click the date label in the toolbar.
- Set the start and the end date. A range can be up to 92 days.
- Click Apply range.
The previous and next arrows then move by the length of the range. Your range is remembered the next time you open the Scheduler.
Toolbar Back to top
The top row has navigation on the left, the view and zoom in the centre, and display options on the right. Hover an icon to see its name.
| Control | What it does |
|---|---|
| Today | Jumps to the period that contains today. |
| Previous / next arrows | Move one period back or forward: a week, two weeks, a month, a year, or the length of your custom range. |
| Date label | Shows the dates on screen. Click it to open Go to date: pick a date and click Go, or set a custom range. |
| One-day arrows | Slide the timeline by one day. Not available in the Year views. A week or month moved by a day continues as a custom range of the same length; pick a view from the dropdown to snap back. |
| View dropdown | Switches between the view modes. |
| Zoom (− / % / +) | Makes the date columns narrower or wider, from 50% to 200%. Click the percentage to go back to 100%. The zoom level is remembered in your browser. |
| Workload switch (Off / On) | Shows or hides the workload bars. The button next to it chooses what the bars count. See Workload Management. |
| Hide weekends switch | Removes the Saturday and Sunday columns, so working days get more room. |
| Refresh | Reloads items, leave and holidays. The timeline stays on screen and keeps its scroll position. |
| Export | Downloads the schedule on screen as an Excel file. |
| Fullscreen | Lets the Scheduler fill the whole app area. Click the button again or press Esc to leave. |
| Board settings (gear icon) | Opens the column mapping, colours and workload options of a board. |
The second row holds the people picker, the display chips, the filter and two action buttons:
- Bulk allocation — books the same hours per day for several people at once. See Allocations.
- + Plan Item — opens the Plan Item panel to find board items and drag them onto the timeline.
Read-only users do not see these two buttons.
Choose Who to Show Back to top
The timeline is empty until you pick people. Use the two dropdowns at the left of the second toolbar row.
- In the first dropdown, choose how rows are grouped: Users, Teams or Team with Users.
- In the second dropdown, tick the people or the monday.com teams you want. You can search by name.
| Grouping | Rows | Best for |
|---|---|---|
| Users | One row per person. | Day-to-day planning (default) |
| Teams | One row per team. It shows only the items assigned to the team itself, not to its members. | Work that is not handed to a person yet |
| Team with Users | A team row with the team's own items, then one row for each member. | Team leads who need both levels |
You can select several teams to see them one under the other.
Items assigned to a team
In monday.com an item can be assigned to a team instead of a person. Such an item sits on the team's row. Drag it to a person's row to hand it to that person. The People column on the board is updated for you.
Filters and Display Chips Back to top
Three chips in the second toolbar row show or hide bars. A chip with a blue background is on.
- Leaves — leave bars.
- Holidays — public holidays.
- Allocations — allocation bars.
Turning a chip off hides the bars. Leave, holidays and allocations still count in the workload bars.
Filter button
Filter narrows which items are shown for the people you picked. It has up to three tabs:
- Boards — in Workspace View, show items from selected boards only.
- Status — All items, Incomplete only or Completed only. Available when the board has a Status column mapped.
- Saved — your saved filters.
Clear appears next to the button with the number of active board and status filters. Click it to remove them.
Saved filters
If you often switch between the same people, teams or boards, save each setup as a named filter. A saved filter remembers the grouping, the selected people and teams, the board and status filters, and whether leave and holidays are shown.
- Save — set the Scheduler up the way you want, open Filter › Saved, type a name and click Save.
- Apply — click a saved filter in the list. The one that matches the screen has a tick.
- Update — change the filters on screen, then click Update next to a saved filter. Its name stays the same.
- Delete — click the bin icon and confirm.
Workload Bars Back to top
Workload is the planned hours of a person on a day. Capacity is the hours that person can work that day. With the Workload switch on, each day of each person has a small bar that compares the two.
The label next to the bar reads planned / capacity, for example 3/8h. Click a bar to see the person's hours day by day.
| Colour | Load | Meaning |
|---|---|---|
| Light blue | Up to 50% | Lightly loaded. There is room for more work. |
| Green | Over 50%, up to 100% | Well used, within capacity. |
| Orange | Over 100%, up to 120% | Slightly over capacity. |
| Red | Over 120% | Too much work. Move or reassign something. |
Capacity comes from the person's capacity scheme, minus holidays and approved leave. Items and allocations add to the planned hours. See Workload Management for the modes, the leave and holiday colours, and the calculation.
Item Bars Back to top
Each board item is a coloured bar. The bar starts and ends on the item's Timeline dates. It shows the item name and a badge with its hours.

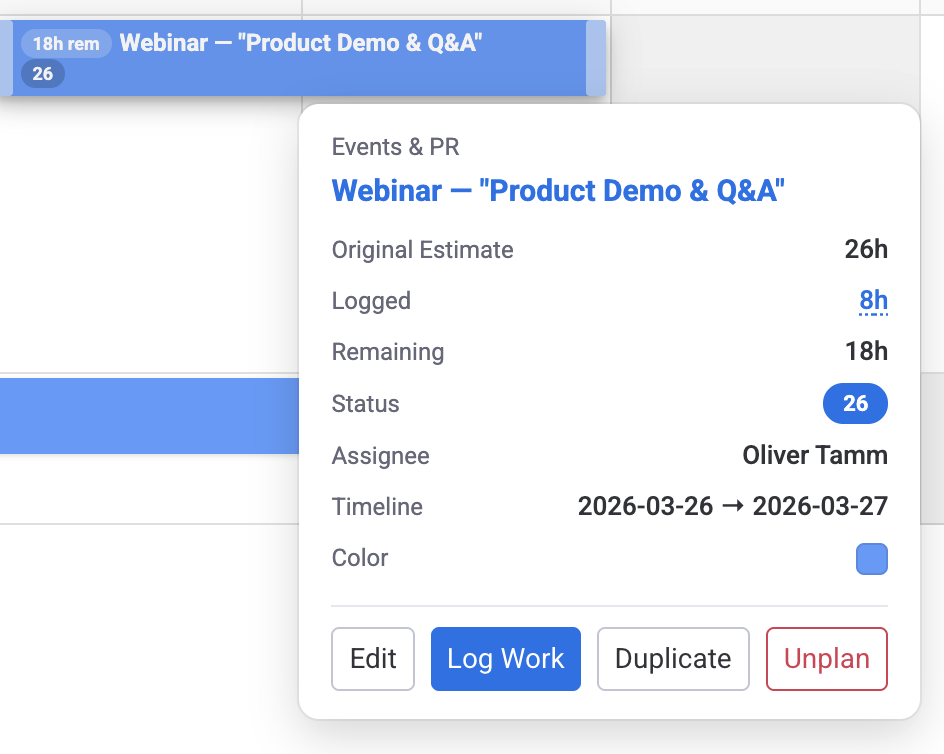

Click a bar to open its details:
- The board and the item name. Click the name to open the item in monday.com.
- The hours. When the workload counts remaining work, you see Original Estimate, Logged and Remaining. If the item has several assignees, Your allocation shows the share of the person whose row you clicked.
- The status, the Dates and the Assignee.
Actions on an item
The details have two buttons, Log work and Edit, and an Actions menu:
- Open in monday — opens the item in monday.com.
- Duplicate — creates a copy of the item on its board.
- Unassign — removes the person or team of this row from the item and keeps its dates. If it was the only assignee, the item leaves the timeline. Find it again in the Plan Item panel.
- Unplan — takes the item off the timeline. The item stays on the board.
Unassign and Unplan ask you to confirm first. Log work is shown only when time tracking is on.
Logged more than estimated
When the logged time is higher than the original estimate, the bar gets a red dashed border and a warning icon. The details show how many hours were logged over the estimate, and Remaining shows 0h.

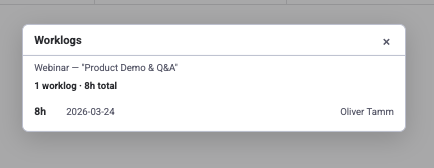

See the logged time of an item
Click the Logged value in the item details. A list opens with every time entry on that item: hours, date, person and description, newest first. The list covers all dates, not only the days on screen.
Log work
Log work opens the Log Work dialog with the item already chosen.
- Enter the Time Spent, or click a quick chip from 15m to 8h.
- Check the Date. Click Log many to log the same hours on every weekday of a date range.
- Pick a Category and add a Work description if you want.
- Click Submit.
The dialog tells you whose time you are logging. Time cannot be changed on days that belong to an approved timesheet. See Time Tracking for the full guide.
Drag and Drop Back to top
Every change is saved to the board's columns right away.
| To do this | Do this |
|---|---|
| Move to other dates | Drag the bar left or right. Its length stays the same. |
| Give to another person | Drag the bar up or down to that person's row. |
| Make longer or shorter | Drag an edge of the bar. Not available in the Year - Monthly view. |
| Add a second assignee | Hold Ctrl (Windows, Linux) or Cmd (Mac) and drag the bar to another person's row. The first assignee stays on the item. |
Keep the Workload switch on while you drag. You see at once whether a move overloads someone.
Add Something to a Day Back to top

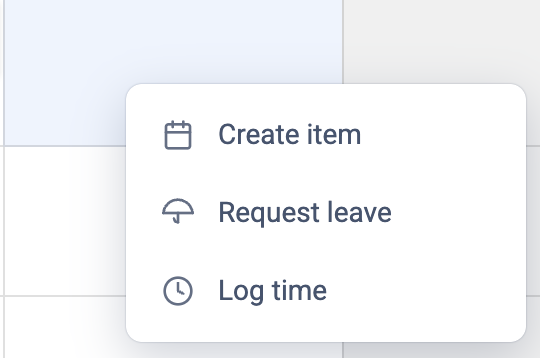

Click an empty day on a person's row to open a small menu. To pick several days, drag across them first. The dialog that opens is filled in with the person and the dates.
| Menu item | What it does |
|---|---|
| Create item | Creates a new board item for that person and those dates. |
| Add allocation | Books hours per day without a board item. See Allocations. |
| Request leave | Opens the leave request. See Requesting leave from the Scheduler. |
| Log time | Opens the Log Work dialog. Shown only when time tracking is on. |

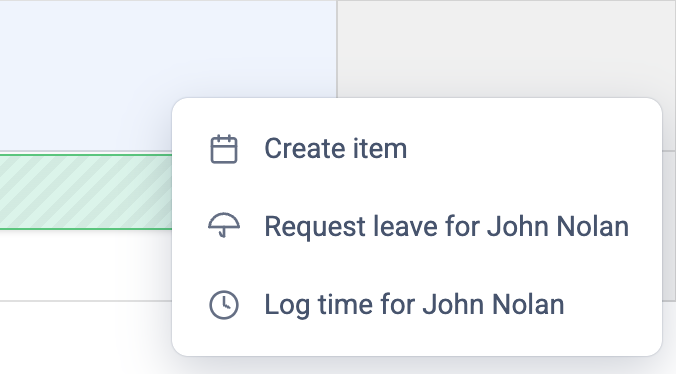

On another person's row the last two read Request leave for {name} and Log time for {name}. You see them only if you may act for that person:
- Request leave for someone — admins, that person's leave approver and their team manager.
- Log time for someone — admins and that person's timesheet approver. Team managers can too, when an admin has allowed logging on behalf of others.
On a team row the menu has only Create item, because a team does not log time or take leave. Press Esc or click outside the menu to close it.
Create item
- Click an empty day and choose Create item. The New Item dialog opens with the assignee and dates filled in.
- Enter the name and pick a group. Hours and status are optional.
- Click Create Item. The item appears on the board and on the timeline.
Whether you create an item or a subitem follows the board's Item Level. For a subitem, search for its parent in the Parent Item field. When the board uses both levels, the dialog has an Item and a Subitem tab.
Log time on several days
When you drag across several days and choose Log time, the same hours are logged on each weekday of the range. For example, 4h across Monday to Friday creates five entries of 4h, 20h in total. Saturdays and Sundays are skipped. Holidays and leave days are not skipped, so check the range first.
Allocations Back to top
An allocation books a person for a number of hours per day over a date range, without a board item. Use it for support duty, pre-sales, training or meetings. It counts in the workload bars.
- Add one — click an empty day on a person's row and choose Add allocation.
- Add for several people — click Bulk allocation in the toolbar.
- Spot it — a light bar with a dashed outline, an A marker, a name and the hours per day.
- Change it — click the bar for Edit and Delete, or drag it like an item.
See Allocations for the dialog fields, the workload rules and how allocations appear in reports.

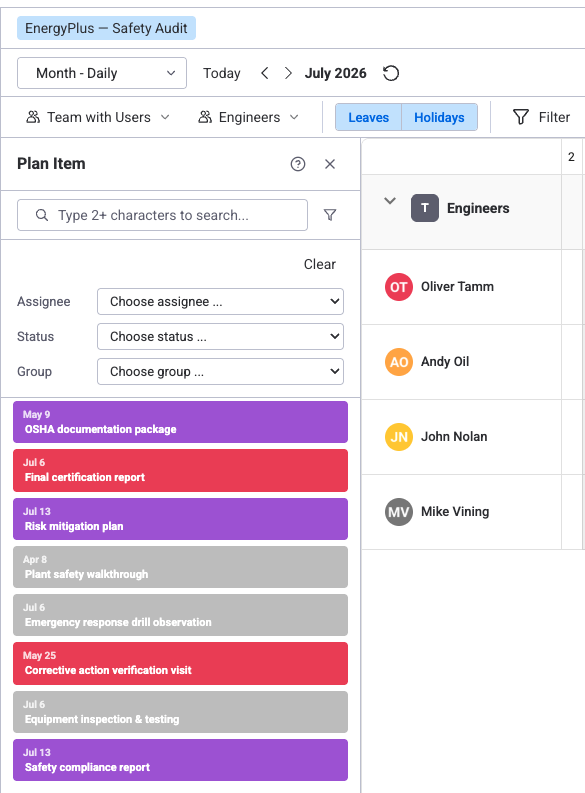

Plan Item Panel Back to top
Use the Plan Item panel to put board items on the timeline, including items that have no dates or no assignee yet.
- Click + Plan Item in the toolbar. The panel opens on the left of the timeline.
- Type at least two characters to search, or narrow the list with All / Unplanned / Planned and the Assignee, Status and Group filters. With several boards there is also a Board filter.
- Drag an item from the list onto a person's row, on the day it should start.
The item's Timeline and People columns are updated and the bar appears on the timeline. Each item in the list shows its name, dates, hours and assignee.
Bar Colours Back to top
Each board decides where its bars get their colour. Open Board settings (the gear icon) and choose a Color Schema:
| Option | Bars are coloured by |
|---|---|
| Status color | The item's status label, with the colours from monday.com. |
| Group color | The colour of the item's group on the board. |
| Color Picker column | A colour you set per item in a Color Picker column. |
Keyboard Shortcuts Back to top
| Shortcut | Action |
|---|---|
| Ctrl / Cmd + drag | Add another assignee instead of replacing the first one. |
| Esc | Close the open dialog or menu. With nothing open, leave fullscreen. |
